Replacement fan 54-00554-01 24V

DC24V, Max Airflow 1200 m³/h, Current Input 5.6A;

Cables Connection:

MP1-27 / EFM1-1 - RED

MP1-28 / EFM1-1 - WHITE

MP1-55 / EFM1-2 - YELLOW

MP1-56 / EFM1-3 - BLACK

Units:

Zephyr 540 / Zephyr540

Supra 850 U / Supra850U

Supra 944U / Supra944U

Supra 950U / Supra950U

Supra 950U Mt / Supra950UMt

Supra 988U / Supra988U

Xarios 150 / Xarios150

Xarios 200 / Xarios200

Xarios 300-05ry / Xarios300-05ry

Xarios 300-07ry / Xarios300-07ry

Xarios 350-05 / Xarios350-05

Xarios 350-05 Mt / Xarios350-05Mt

Xarios 400 / Xarios400

Xarios 500 / Xarios500

Xarios 500 Mt / Xarios500Mt

Xarios 500-04 / Xarios500-04

Xarios 600 / Xarios600

Xarios 600 Mt / Xarios600Mt

P/N:02.24.22

REF: EBM R1G250-AQ21-52; EBM R1G250-AI13-20

          Carrier: 54-00554-01

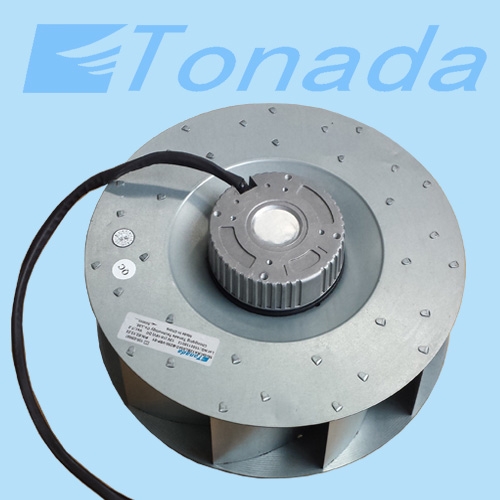

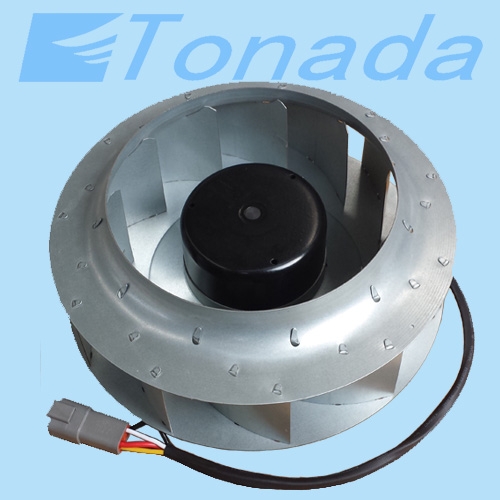

Tonada DC brushless centrifugal blowers (backward curved) feature remarkable performance, high efficiency, low energy consumption and super long life span. More importantly, they have high power output, sustained high torque and powerful motive force. As a result of these superior characteristics, they can drive huge volume of air exchange for the purpose of cold and hot air regulation in various equipment and systems. Models of higher speed and larger airflow volume than AC motor are also available.
Wide range of speed regulation and the intelligent adjustment by the open circuit and closed circuit which make the fans control the needed air volume accurately automatically. DC blowers are especially compatible for air flowing, ventilation, air conditioning, refrigeration and automobile industry etc. DC brushless evaporator blowers with single-speed version, and variable speed version are available.

FEATURE: [Download e-Catalog]

No Carbon Brush; Low Power Consumption; Super Long Service Life; Maintenance-free; Environment-friendly; Short Circuit Protection; Over-current Protection; Over-temperature Protection; Over-voltage Protection; Under-voltage Protection; Locked-rotor protection.Tonada DC brushless centrifugal blowers feature remarkable performance, high efficiency, low energy consumption and super long life span. More importantly, they have high power output, sustained high torque and powerful motive force. As a result of these superior characteristics, they can drive huge volume of air exchange for the purpose of cold and hot air regulation in various equipment and systems. Models of higher speed and larger airflow volume than AC motor are also available.
